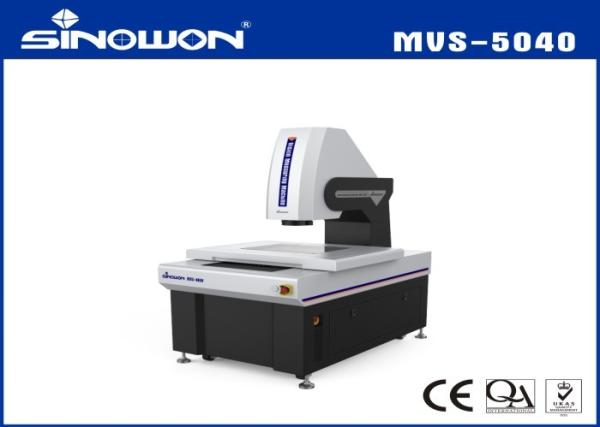

Fully Auto Optical Measuring Machine Joystick Controller Automatic Detection Program

Name: Fully Auto Optical Measuring Machine Joystick Controller Automatic Detection Program
Brand: Sinowon
Price: 1 USD

Brand Name : Sinowon

Model Number : MVS-5040

Certification : CE

Place of Origin : China

MOQ : 1 Set

Payment Terms : T/T in advance

Supply Ability : 100 sets per month

Delivery Time : 25 work days

Packaging Details : plywood

X/Y-axis Travel : 500x400mm

Load Capacity : 25Kg

Dimension : 1420*980*1650mm

Operation Mode : Automatic Detection Program

Software System : 2.5D iMeasuring 4.0 Fully-auto measuring software

3D Measurement : Optional iMeasuring 4.2 3DMeasuring software and imported probe

Contact Now

Fully Auto Optical Measuring Machine Joystick Controller Automatic Detection Program

Application:

Cutting, touch screen, mobile phones, medical equipment, PCB, Film, electronic carrier tape, rubber, clocks, gears, mechanical processing, automobile and motorcycle parts, bearings, motors, precision hardware, tools, electronic components and other industries.

Products Characteristic:

With powerful function iMeasuring4.0 automatically measuring software, it can program automatic measurement and enhance quality control to a new level;
Optional imported contact probe and 3D Measuring Software, which help to update the machine to be Fully Auto contact 3D Measuring Machine;
Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption.

Technical specification:

2.5D Model		MVS-5040
Code#		523-380
X/Y-axis Travel		500x400mm
Load Capacity		25Kg
Dimension		14209801650mm
Weight		550Kg
Z-axis Travel		200mm
X/Y/Z3-axis Linear Scale		High Accuracy Linear Scale,Resolution:0.0005mm
Guidance Mode		Precision Linear Guide, Double-track Double Slider Guide
Operation Mode		Joystick Controller, Mouse Operation, Automatic Detection Program
Accuracy		X/Y-axis:≤3+L/200(um)
		Z-axis:≤4+L/200(um)
Repeatability		±2um
Video System		High Definition 1/3"Color CCD Camera
		6.5X Motorized Coaxial Zoom Lens
		Optical Magnification:0.7X-4.5X；Video Magnification:22X~145X
Illumination	Contour	LED Parallel Cold Illumination
	Surface	Adjustable 0~255 grades 5-ring 8-division Illumination
Software System		2.5D iMeasuring 4.0 Fully-auto measuring software
3D Measurement		Optional iMeasuring 4.2 3DMeasuring software and imported probe

Standard Delivery:

Product Name	Code#	Product Name	Code#
Fully-auto Measuring Software	IM 4.0	Continuous Detented Zoom Lens	421-161
Calibration Block	581-801	5R/8D LED Illumination	425-141
Motion Controller	526-111	Contour Parallel LED Surface Cold Illumination	425-131
Imported 0.5um Linear Scale	581-201	LED Coaxial Cold Illumination	/
Data Processor	564-301	1/3”Color Camera	484-123
CCD Image Navigation	581-331	Video Capture Card	527-131
Joystick	581-871	PC/Monitor	/
Certification	/	Operation Manual	/
